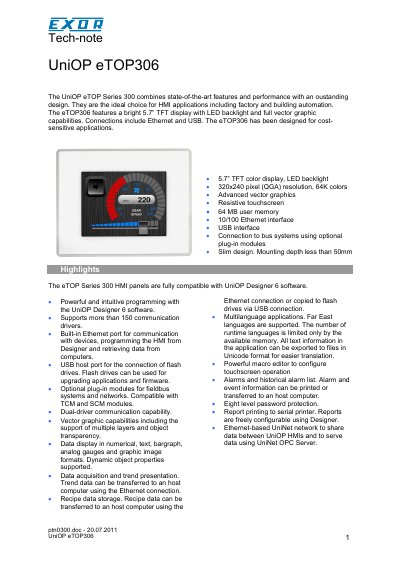

The UniOP eTOP306 is a powerful HMI panel suitable for applications including factory and building automation. It features a bright 5.7” TFT display with LED backlight and full vector graphic capabilities. Connections include Ethernet and USB, and it is designed for cost-sensitive applications.
The UniOP eTOP306 is a Human Machine Interface (HMI) panel designed for factory and building automation applications. It features a 5.7-inch TFT color display with LED backlight and supports advanced vector graphics. The device includes Ethernet and USB interfaces for connectivity and data transfer.
| Display Type | 5.7" TFT color display, LED backlight |
|---|---|
| Resolution | 320x240 pixel (QGA) |
| Colors | 64K colors |
| Touchscreen Type | Resistive |
| User Memory | 64 MB |
| Ethernet Interface | 10/100 |
| USB Interface | Host interface, version 1.1 |
| Power Supply Voltage | 24 V DC (18 to 30 Vdc) |
| Current Consumption | 0.55 A at 24Vdce(max.) |
| Operating Temperature | 0 to 50°C |
| Protection Class | IP65 (front panel) |
| Weight | Approx 1.0 Kg |
The eTOP Series 300 HMI panels are fully compatible with UniOP Designer 6 software.
Yes, Far East languages are supported, and the number of runtime languages is limited only by available memory.
