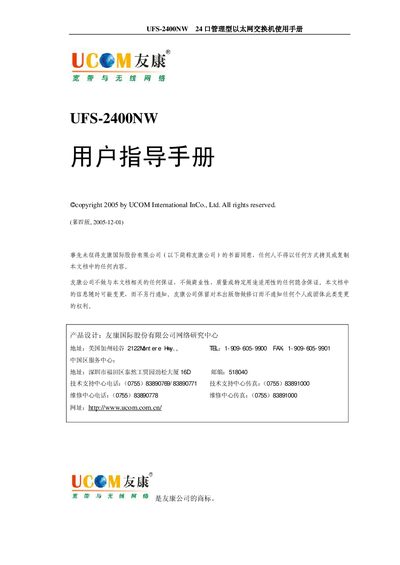

The UCOM UFS-2400NW user manual provides installation, configuration, and management instructions for the 24‑port managed Ethernet switch.
This manual covers the UFS-2400NW managed Ethernet switch, a 24‑port device with 10/100 Mbps adaptive ports and optional 100BASE‑FX modules. It includes product overview, physical description, installation steps, wiring, and detailed management features such as VLAN, STP, QoS, and link aggregation.
The guide also explains console access, web‑based management, SNMP, RADIUS/802.1x authentication, and provides troubleshooting tips. All specifications, safety notices, and regulatory information are included to help users deploy the switch in campus or small‑business networks. This manual is written in Chinese.
| Number of Ethernet ports | 24 10/100 Mbps adaptive ports |
|---|---|
| Optional fiber ports | Up to 2 × 100BASE‑FX (multimode or single‑mode) |
| Input voltage | 110‑240 V AC, 50‑60 Hz |
| Switching backplane capacity | 6.4 Gbps |
| MAC address table size | 6 K entries |
It provides 24 high‑performance 10/100 Mbps adaptive Ethernet ports.
The switch operates on an AC input voltage of 110 V to 240 V (50‑60 Hz).
Up to seven link‑aggregation groups are supported, each with a maximum of four ports.
Yes, the manual includes a section on web‑based network management with configuration steps.
