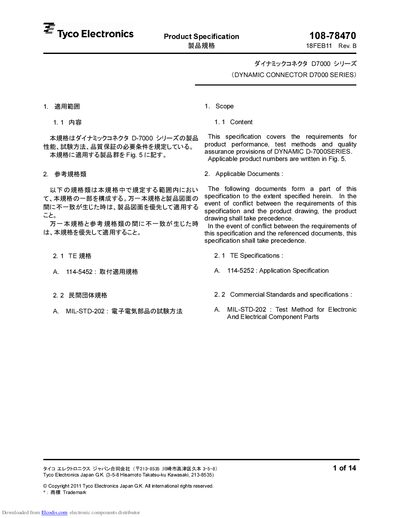

The Tyco Electronics D7000 Series Dynamic Connector product specification defines performance, test methods, ratings, materials, and environmental conditions.
This specification covers the design, construction, and performance requirements for the D7000 Series Dynamic Connector, including applicable product numbers and reference standards. It details the electrical, mechanical, and environmental tests that the connector must pass.
Key ratings include a 630 V AC/DC voltage rating, up to 60 A (65 A wire‑to‑board) current rating, and an operating temperature range of –55 °C to +105 °C. Materials, plating, and safety requirements such as UL‑94V‑0 flammability are also defined. This manual is written in Japanese.
| Voltage Rating | 630 V AC/DC |
|---|---|
| Current Rating (max) | 60 A |
| Wire‑to‑Board Current Rating (max) | 65 A |
| Temperature Rating | -55 °C to +105 °C |
| Termination Resistance (Low Level) | ≤ 2 mΩ |
| Insulation Resistance | ≥ 1000 MΩ at 500 V DC |
| Dielectric Withstand Voltage | 3 kVAC for 1 min (leakage ≤0.5 mA) |
| Connector Mating Force | ≤ 19.6 N per contact |
| Connector Unmating Force | ≥ 4.9 N per contact |
| Housing Locking Strength | ≥ 196 N |
| Contact Retention Force | ≥ 98 N |
| Solderability (wet coverage) | ≥ 95 % |
| Solder Temperature | 235 °C ± 5 °C |
The connector is rated for 630 V AC/DC and a maximum current of 60 A (65 A for wire‑to‑board applications).
It can operate from –55 °C up to +105 °C.
Termination resistance must be 2 mΩ or less, and insulation resistance must be at least 1000 MΩ at 500 V DC.
Mating force is limited to 19.6 N per contact, while unmating force must be at least 4.9 N per contact.
