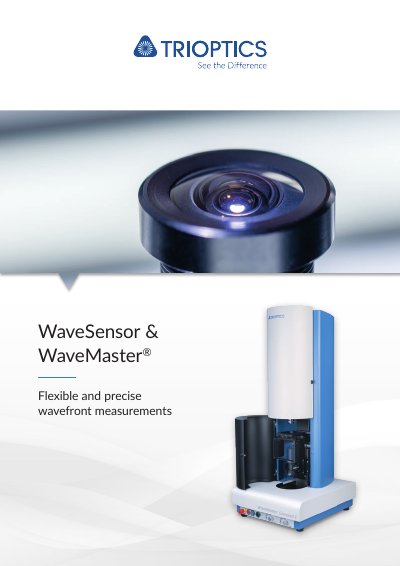

TRIOPTICS WaveSensor & WaveMaster Wavefront Measurement Systems Product Leaflet

About this manual

TRIOPTICS develops and produces optical measurement technology for the development, quality control, and production of lenses and camera modules. Their WaveSensor & WaveMaster systems utilize Shack-Hartmann sensor technology to perform spatially-resolved quality inspection across the entire sample aperture, determining image quality parameters such as wavefront size, Zernike coefficients, PSF, MTF, and Strehl ratio.

What's inside

• Measurement Principle
• WaveSensor 150 Features
• WaveMaster Compact 2
• WaveMaster PLAN
• WaveMaster UST
• WaveMaster Field
• WaveMaster PRO 2
• WaveMaster Software

Specifications

Frequently asked questions

What measurement principle is used by TRIOPTICS systems?

The systems perform wavefront measurement using a Shack-Hartmann sensor.

What parameters are determined by wavefront measurements?

Parameters include wavefront size (PV and/or RMS), Zernike coefficients, PSF, MTF, Strehl ratio, wedge angle, and focal length.

What is the measurement duration for the WaveMaster PRO 2?

The typical measurement time is 3 seconds per lens.
