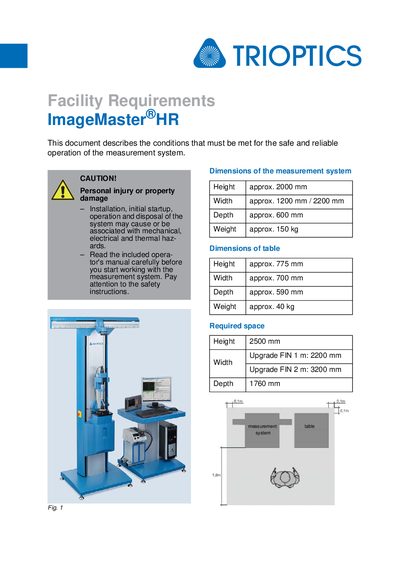

This guide outlines facility requirements, dimensions, electrical specifications, and environmental conditions for the safe operation of the TRIOPTICS…
The document provides essential information regarding the installation and operational environment for the ImageMaster HR measurement system. It details the physical dimensions of the system and table, including weight and required space, along with specific safety precautions to prevent personal injury or property damage during setup and disposal.
Furthermore, it specifies the necessary facility conditions such as surface stability, vibration criteria (ISO 'Operating Theatre'), electrical connections, power consumption, and environmental limits for temperature and humidity. The guide also lists applicable statutory provisions and standards relevant to the equipment's operation.
| System Weight | approx. 150 kg |
|---|---|
| Table Weight | approx. 40 kg |
| System Height | Height approx. 2000 mm |
| Table Width (Standard) | approx. 1200 mm |
| Electrical Connection Type | Euro SCHUKO (CEE 7/4) |
| Power Consumption (220-250V) | 1300 W |
| Operating Temperature Range | -30 to +60 °C |
| Recommended Operating Temperature | 20 °C +/- 5 °C |
A stable, non-vibrating surface that meets the 'Operating Theatre' (ISO) vibration criteria.
The system operates in temperatures between -30 and +60 °C with humidity below 65%.
