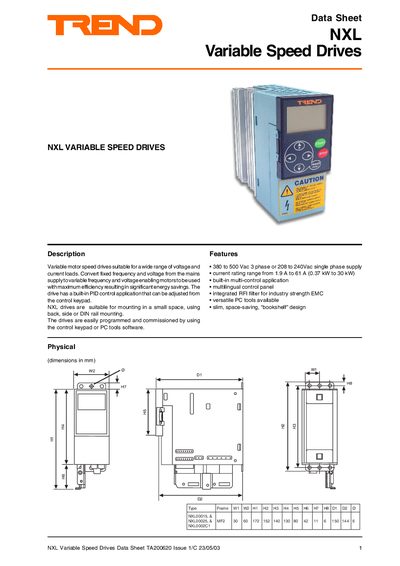

The datasheet details features, specifications, hardware options, installation and control functions for Trend NXL variable speed drives.
The Trend NXL series provides variable speed drives for a wide range of voltage and current loads, converting fixed frequency and voltage to variable output for efficient motor operation. The drives include a built‑in PID control, multilingual control panel, integrated RFI filter and optional I/O expansion.
Installation is flexible with back, side, DIN‑rail, wall or enclosure mounting. The drives support RS485 Modbus fieldbus, optional NXOPTAA I/O board, and are programmed via a detachable keypad or Windows‑based PC tools such as NCDrive and NCLoad.
| Supply voltage | 380‑500 V AC 3‑phase or 208‑240 V AC single‑phase |
|---|---|
| Current rating range | 1.9 A to 61 A (0.37 kW to 30 kW) |
| Power range | 0.37 kW to 30 kW |
| Integrated RFI filter | Yes, industry‑strength EMC protection |
| Mounting options | Back, side, DIN‑rail, wall or enclosure with four screws/bolts |
| Cooling method | Convection for low‑power models; forced air for higher‑power models |
| Optional I/O expansion board | NXOPTAA – 3 digital inputs, 1 relay output, 1 digital open‑collector output |
| Active fault history depth | Up to 5 active faults |
It accepts 380‑500 V AC three‑phase or 208‑240 V AC single‑phase supply.
The series covers up to 30 kW, corresponding to a current rating of 61 A.
The drive can display up to five active faults and keeps a history of them.
They can be mounted back, side, DIN‑rail, or installed on a wall or in an enclosure using four screws or bolts.
