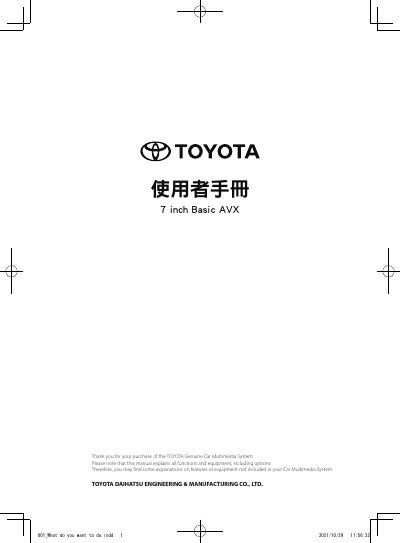

This manual provides operating instructions, safety information, and specifications for the Toyota 7‑inch Basic AVX car multimedia system.
The manual explains how to safely install and use the Toyota 7 inch Basic AVX multimedia system, covering warnings, cautions, and proper handling before operation. It also describes how to power the unit, adjust settings, and troubleshoot common issues.
Detailed sections cover basic operation, touchscreen controls, Bluetooth and USB connectivity, audio and system settings, and a full specification table. The document includes safety notices, language selection, and a troubleshooting guide to help users resolve errors. This manual is written in Chinese.
| Maximum Power (Front & Rear) | 50 W × 4 |
|---|---|
| Frequency Range | 20 Hz – 20 kHz |
| Speaker Impedance | 4 Ω – 8 Ω |
| Operating Voltage | 12 V DC |
| Maximum Current Consumption | 15 A |
| Dimensions (W × H × D) | 205 mm × 104 mm × 175.95 mm |
| Weight | 1.29 kg |
Use the volume buttons to increase or decrease the level from 0 to 40.
Touch the [Language] button on the regional settings screen to select a different language.
The system can deliver up to 50 W per channel (four channels total).
