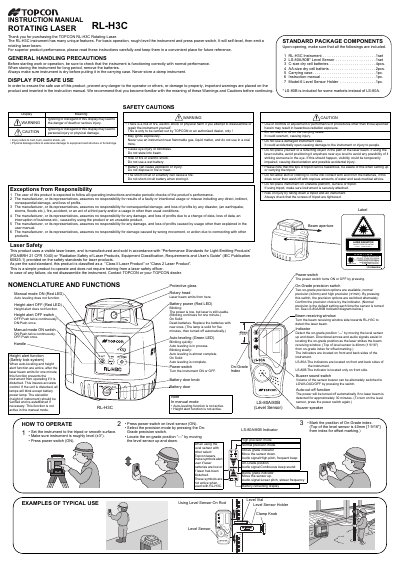

The TOPCON RL-H3C Rotating Laser User Manual provides operation, safety, calibration, battery replacement, and specifications.
This manual introduces the TOPCON RL-H3C Rotating Laser, covering basic operation, safety precautions, and handling instructions. It lists the standard package components, explains laser safety classifications, and describes how to power the instrument and use the level sensor.
Detailed sections guide users through battery replacement, calibration of the X and Y axes, error code troubleshooting, and provide full technical specifications such as accuracy, beam range, and environmental limits.
| Accuracy | ±3.6mm/50m (±15 ") |
|---|---|
| Automatic correction range | ±3° |
| Beam detecting range | Approx. 2m~300m diameter (6ft~980ft) |
| Rotational speeds | 600 r.p.m |
| Laser source | Laser diode (Visible, 650nm) |
| Laser power output | 0.8mW (Max.) |
| Laser class | Class 2 laser product |
| Power supply | 4 x C size dry cell batteries (alkaline) |
| Operating time | Approx. 60 hours at +20°C |
| Protection rating | IP56 |
| Operating temperature | -20°C~+50°C |
| Dimensions | 167(L)×182(W)×189(H) mm |
| Weight | 1.9 kg (including dry batteries) |
It is classified as a Class 2 laser product.
The instrument powers off automatically after approximately 30 minutes without beam detection.
Press the height alert OFF switch while the instrument is on, then use the level sensor to mark the beam height on a wall, rotate the instrument 180°, and adjust until the marks align.
