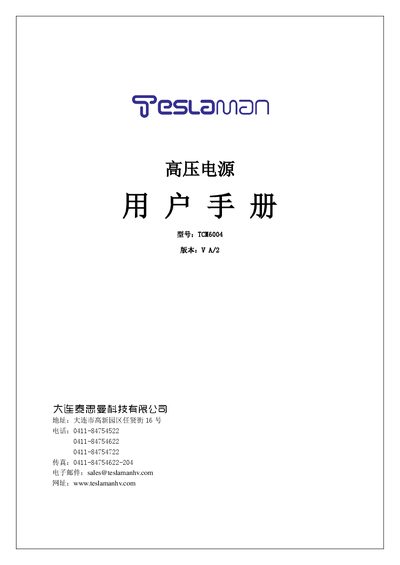

User manual for the Teslaman TCM6004 series intelligent modular high voltage power supply, covering installation, operation, and safety.
The Teslaman TCM6004 series is an intelligent modular high voltage power supply that utilizes digital control methods. It features multiple control settings, including constant voltage and constant current modes, and provides comprehensive protection against over-voltage, over-current, and arc faults. The unit is designed for applications such as plasma sterilization, dust removal, air purification, and electrostatic fields. This manual is written in Chinese.
| Output Voltage | 30kV |
|---|---|
| Maximum Output Power | 12W |
| Input Voltage | AC230V/220V/110V |
| Voltage Regulation (Load) | 0.01% |
| Ripple Voltage | 1% rms |
| Operating Temperature | 0℃至50℃ |
| Dimensions | 145mm x 68mm x 111mm |
Typical applications include plasma sterilization, dust removal, air purification, electrostatic fields, and capacitor charging and discharging.
Yes, the power supply has a grounding detection function that automatically shuts off high voltage output if a grounding abnormality is detected.
The front panel has a three-position switch that sets the output to 30kV (left), 25kV (middle), or 20kV (right).
