TeslaMan TXR1050 Power Supply User Manual

This document is the user manual of Dalian Teslaman High Voltage Power Supply Co., Ltd. It introduces the safety precautions, operation and maintenance of the high voltage power supply with model TXR1050.

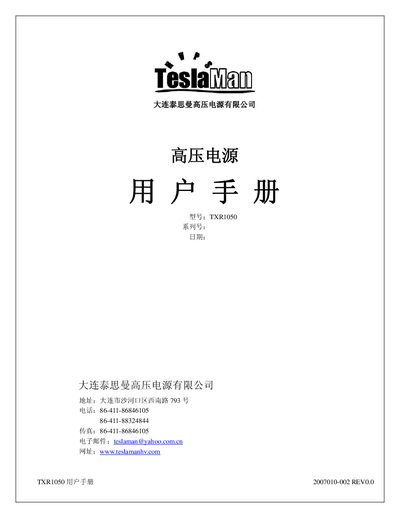

TeslaMan TXR1050 Power Supply User Manual - cover page
Brand
TeslaMan
Category
AC-DC Power
Document type
User Manual
Language
Chinese
Pages
18
File format
PDF
File size
363 KB
Published
30 September, 2011
Updated
28 September, 2023
MD5 checksum
38D6565BAE9E2BE0AEC2D45017FD26FC
PDF
TeslaMan TXR1050 Power Supply User Manual PDF

About this manual

This manual introduces the TXR1050 series high‑voltage power supply, describing its main functions, optional features and technical specifications. It includes safety warnings, grounding requirements, and detailed procedures for inspection, installation, and routine operation.

The document also covers maintenance, parts replacement, and warranty information, helping qualified personnel safely service the unit and obtain proper support from TeslaMan. This manual is written in Chinese.

What's inside

  • Series Overview
  • Safety Guidelines
  • Inspection and Installation
  • Operation Guide
  • Specifications
  • Optional Features
  • Maintenance and Parts Replacement
  • Warranty Overview

Specifications

Input VoltageDC12V, DC24V, AC220V
Output Voltage20 kV, 30 kV, 50 kV, 60 kV
External Control Voltage0 V – 10 V
Operating Temperature Range0 °C – +50 °C (operating), -20 °C – +80 °C (storage)
Temperature Coefficient0.01 %/°C

Frequently asked questions

What voltage range is used for external control signals?

External control signals use a voltage range of 0 V to 10 V.
