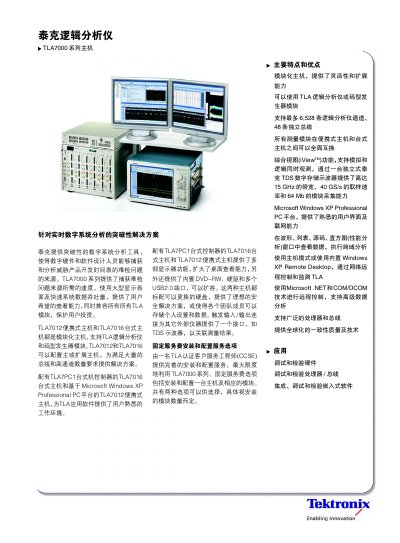

User manual for the Tektronix TLA7000 Series Logic Analyzer host, covering features, specifications, and configuration for TLA7012 and TLA7016 models.
This document serves as the user manual for the Tektronix TLA7000 Series Logic Analyzer hosts, specifically the TLA7012 portable host and the TLA7016 desktop host. It details the modular design which supports up to 6,528 logic analyzer channels and 48 independent buses, allowing for flexible expansion using TekLink cables.
The manual outlines the general features and specifications for both host models, including their compatibility with TLA logic analyzer and pattern generator modules. It also describes the integrated iView feature for simultaneous analog and logic observation, supported by compatible Tektronix TDS oscilloscopes. Furthermore, it provides technical details on the PC platforms, including operating systems, processors, memory, and connectivity options for the TLA7012 and TLA7016 hosts. This manual is written in Chinese.
| Maximum Logic Analyzer Channels | 6,528 |
|---|---|
| Maximum Independent Buses | 48 |
| Operating System | Microsoft Windows XP Professional |
| Processor (TLA7012) | 2 GHz Intel Pentium M-760 |
| Processor (TLA7016) | 3 GHz Intel Pentium 4 |
| Memory (TLA7012) | 1 GB DDR PC 533 MHz |
| Hard Drive (TLA7012) | 80 GB Serial ATA |
| External Display Resolution | 1600x1200 |
The TLA7000 Series supports up to 6,528 logic analyzer channels.
Yes, they can be configured as a master or expansion host using TekLink cables.
The TLA7012 host requires Microsoft Windows XP Professional.
