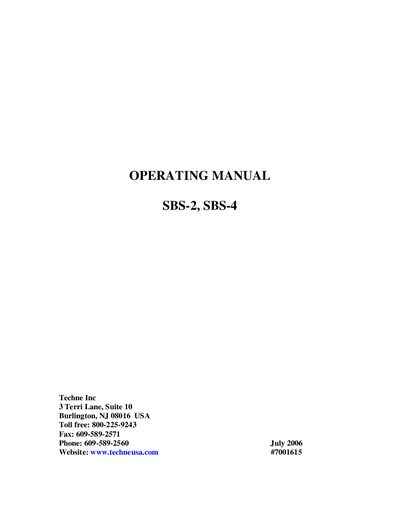

Operating manual for Techne SBS-2 and SBS-4 fluidized baths covering installation, operation, maintenance, troubleshooting and spare parts.
The Techne SBS-2 and SBS-4 fluidized baths are supplied in two cartons, one with the bath and the other with aluminum oxide media. The manual provides step‑by‑step installation instructions, including air supply setup (15 psi, 4‑5 cfm) and optional use of the Techne TC‑8D temperature controller.
Operational guidance covers gate‑valve control, energy regulator settings, and heater monitoring. Maintenance procedures describe regular checks of the porous plate, heaters, and air filter, while the fault‑finding section lists common problems and corrective actions. A complete spare‑parts list and wiring diagrams are included for service technicians.
| Heater current (SBS‑2, 120 V) | 6.2 A |
|---|---|
| Maximum operating temperature | 200 °C |
