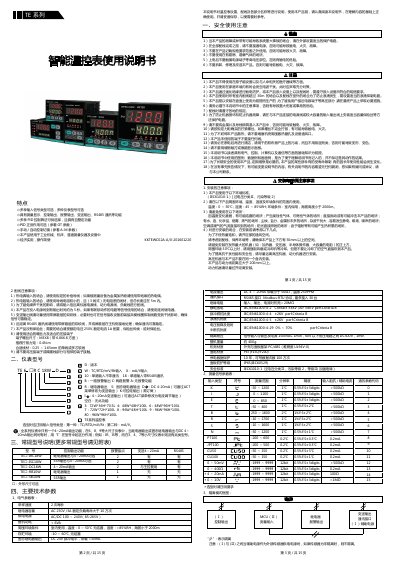

This manual covers the settings, wiring, installation, and operation of the TE Series temperature controller, including safety precautions and communication…
This manual provides instructions for the TE Series temperature controller, covering settings, wiring, and component identification. It highlights key features such as multiple input signal types, PID control algorithms with auto-tuning, and various output options including relay, SSR, and RS485 communication.
The document details safety precautions, installation requirements, and electrical parameters. It includes specific wiring guidelines for thermocouples and thermistors, isolation diagrams, and troubleshooting methods for common faults. This manual is written in Chinese.
| Operating Humidity | 45 ～ 85%RH |
|---|---|
| Altitude Limit | Less than 2000m |
| Power Supply | AC/DC 100～240V |
| Sampling Speed | 2 times per second |
| Relay Capacity | AC 250V /3A |
| Relay Life | Greater than 100,000 times |
| Communication Protocol | Modbus-RTU |
| Max RS485 Devices | 30 units |
The recommended tightening torque is 0.4N.m.
The sampling speed is 2 times per second.
The RS485 interface supports the Modbus-RTU protocol.
