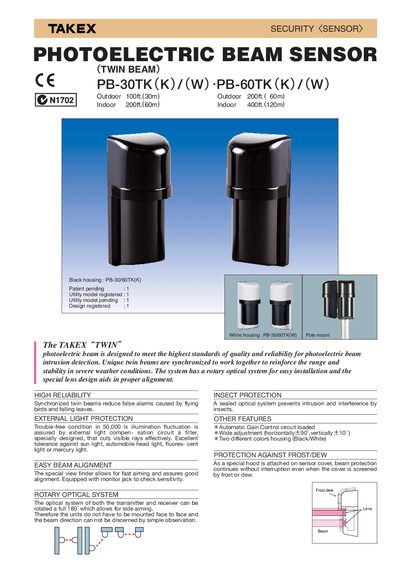

The TAKEX FBN-FOT'SPTU EFX photoelectric beam sensor provides synchronized twin beams, external light protection, and adjustable detection ranges up to 120 m.
The sensor uses synchronized twin beams to reduce false alarms caused by birds, leaves, and other moving objects. It features an external light compensation circuit with a filter that cuts visible rays, making it tolerant to sunlight, vehicle headlights, and fluorescent lighting.
A special view finder and monitor jack enable fast beam alignment, while a rotary optical system allows 180° rotation for flexible mounting. The sealed optical design protects against insects, frost, and dew, and the housing is available in black or white.
| Maximum beam range (approx.) | Indoor 400 ft (120 m) |
|---|---|
| Response time | 50 ms to 700 ms |
| Supply voltage | 10 V to 30 V DC |
| Current consumption | ≤ 53 mA |
| Alarm output contact capacity | 30 V AC/DC, ≤ 0.5 A |
| Ambient temperature range | -13 °F to 140 °F (‑25 °C to 60 °C) |
| Weight (transmitter/receiver) | 13.3 oz (380 g) / 14 oz (400 g) |
| Housing colors | Black or White |
The sensor can detect objects up to 120 m (400 ft) indoors.
It uses an external light compensation circuit and a specially designed filter that cuts visible rays.
The response time ranges from 50 ms to 700 ms.
