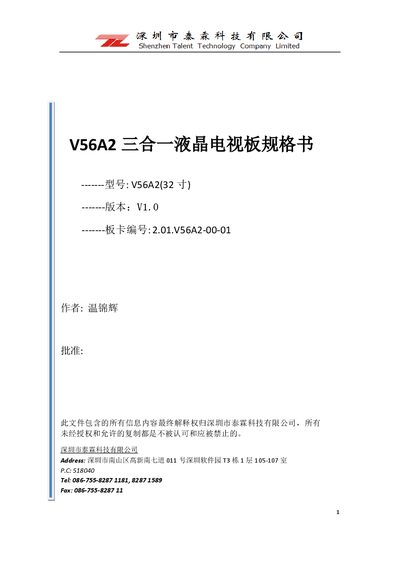

Tailin V56A2 LCD TV Driver Board Specification

About this manual

The V56A2 is a multifunction LCD TV driver board designed for markets in Africa, the Middle East, Asia‑Pacific and Russia. It accepts PAL, SECAM or NTSC broadcast signals and provides HDMI and AV video inputs, plus a built‑in 2×8 W (16 Ω) audio amplifier with AV output.

Key features include a maximum video resolution of 1920×1080, a wide RF input range of 48.25 MHz‑863.25 MHz, 75 Ω audio input impedance, and a power supply rated at AC 220 V with standby consumption under 0.5 W. The board also offers multiple LVDS, VGA, USB and Ethernet interfaces and complies with international safety standards. This manual is written in Chinese.

What's inside

• Product Overview
• Product Features
• Mechanical Drawing
• Remote and Button Board Schematic
• Interface Definition
• Input Characteristics
• Protection Functions
• International Standards
• Precautions
• Assembly Precautions

Specifications

Frequently asked questions

What video input formats does the V56A2 support?

It supports HDMI, AV, and TV broadcast signals in PAL, SECAM or NTSC formats.

What is the audio output capability of the board?

The board includes a built‑in audio amplifier delivering 2 × 8 W into a 16 Ω load.

What is the required mains voltage for the V56A2?

It operates from a standard AC 220 V mains supply.

What is the maximum video resolution the board can handle?

It can display up to Full HD 1920 × 1080 pixels.
