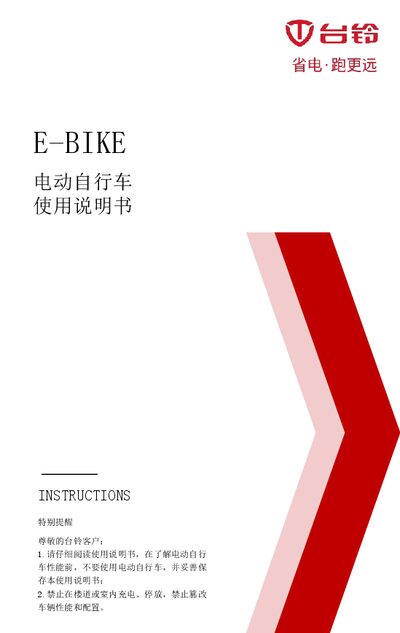

Official user manual for the Tailg TDT1310Z electric bicycle, covering safety, operation, charging, maintenance and warranty.
This manual provides safety warnings, operating instructions, and maintenance guidelines for the Tailg TDT1310Z electric bicycle. It includes detailed sections on vehicle specifications, wiring diagrams, battery installation, torque settings for fasteners, adjustment methods, troubleshooting, and warranty terms.
The document also outlines charging procedures, battery care, regular inspection schedules, and the three‑package (三包) warranty policy, helping owners keep the bike in optimal condition and comply with local regulations. This manual is written in Chinese.
| Overall dimensions (L×W×H) | 1465 mm × 685 mm × 1040 mm |
|---|---|
| Vehicle weight | 51 kg |
| Maximum load | 75 kg |
| Maximum design speed | 25 km/h |
| Range per charge | 85 km |
| Motor power (rated) | 400 W |
| Battery type | Lithium‑ion, 24 Ah, 48 V |
| Rated torque | 11 N·m |
| Front/rear tire pressure | 250 kPa |
| Charging time | 2–8 hours |
Charging the battery takes between 2 and 8 hours, with about 8 hours needed for a full charge.
Both front and rear tires should be inflated to 250 kPa.
The bike’s highest design speed is 25 km/h.
