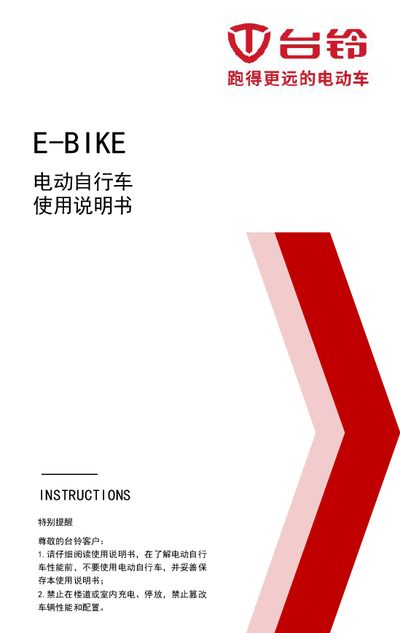

The Tailg TDS009Z (Z9) electric bike user manual provides safety instructions, operation guide, maintenance steps, specifications, and warranty information.
This manual explains how to safely operate the Tailg TDS009Z (Z9) electric bicycle, covering pre‑ride checks, riding techniques, braking, and charging procedures. It also lists prohibited actions such as indoor charging and riding by under‑aged users.
Additional sections detail regular maintenance, component torque values, battery care, troubleshooting of common faults, and the warranty and service terms offered by Tailg. Technical specifications of the bike are provided for reference. This manual is written in Chinese.
| Overall dimensions (L×W×H) | 1180×535×1000 mm |
|---|---|
| Vehicle weight | 27.6 kg / 31 kg |
| Range (full charge) | 70 km / 100 km |
| Energy consumption per 100 km | 1.2 kWh/100km |
| Tire size (front/rear) | 14*2.125 |
| Tire pressure | 240‑310 kPa |
| Battery capacity | 28 Ah / 40 Ah |
| Controller undervoltage protection | 39 V ± 0.5 V |
| Charger input voltage | AC 220 V – 50 Hz |
The bike is limited to a maximum design speed of 25 km/h.
A full charge normally takes between 2 and 8 hours.
No – charging indoors, in stairwells, corridors or other public areas is prohibited.
The motor is covered for 36 months under the warranty.
