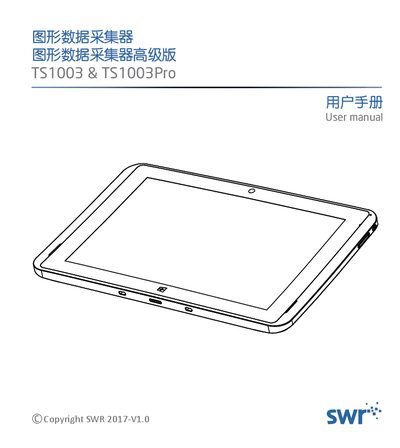

The SWR TS1003/TS1003Pro advanced graphical data collector user manual explains features, specifications, connections, software acquisition and safety…
This manual introduces the SWR TS1003 and TS1003Pro graphical data collectors, describing their hardware configuration, built‑in sensors, and accessories such as data cables, heart‑rate ear clips and syringe kits. It also provides step‑by‑step instructions for connecting sensors, using the SWR iLab software, and operating the device safely.
Key sections cover product specifications, network interfaces (Wi‑Fi, Bluetooth, USB, HDMI), power details, and warranty information. The guide is aimed at teachers and students in primary, middle and high school science labs. This manual is written in Chinese.
| Physical dimensions | 275 mm × 175 mm × 25 mm |
|---|---|
| Display | 10.1" IPS touchscreen, 1920 × 1200 resolution, 10‑point capacitive |
| Battery | Polymer Li‑ion 7000 mAh, 6‑8 hour runtime |
| Memory | 2 GB DDR3L RAM, 32 GB NAND flash storage |
| Cameras | Front 2.0 MP, Rear 5.0 MP |
| Operating system | Windows 10 trial version |
The device uses a Windows 10 trial version as its operating system.
The battery provides 6 to 8 hours of continuous operation.
