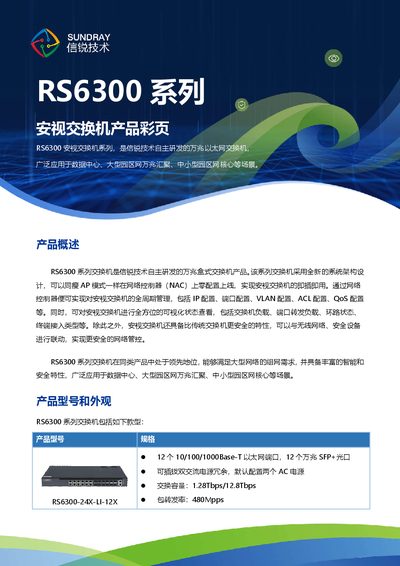

The Sundray RS6300 series Anshi switches are 10/100/1000/10G Ethernet devices with modular ports, redundant power and advanced security features.
The RS6300 series Anshi switches are 10‑gigabit Ethernet box switches developed by Sundray. They provide plug‑and‑play zero‑configuration deployment via a network controller, allowing full‑cycle management of IP, VLAN, ACL, QoS and more.
Key features include visual network management, extensive security controls (face recognition, 802.1X, portal, two‑factor authentication), high‑performance switching capacity, redundant power supplies, and support for virtualization technologies such as M‑LAG and vUnit stacking. This manual is written in Chinese.
| 10/100/1000Base‑T ports (RS6300‑24X‑LI‑12X) | 12 |
|---|---|
| 10G SFP+ ports (RS6300‑24X‑LI‑12X) | 12 |
| 40GE QSFP+ ports (RS6300‑26Q‑EI‑24X) | 2 |
| Switching capacity (RS6300‑24X‑LI‑12X) | 1.28 Tbps (12.8 Tbps aggregate) |
| Forwarding rate (RS6300‑24X‑LI‑12X) | 480 Mpps |
| Maximum power consumption (RS6300‑24X‑LI‑12X) | ≤ 60 W |
| Redundant power supplies | Dual hot‑swap AC power (1+1) |
It provides a switching capacity of 1.28 Tbps (12.8 Tbps aggregate).
The RS6300‑26Q‑EI‑24X includes two 40GE QSFP+ ports.
Yes, the series supports dual hot‑swap AC power supplies for 1+1 redundancy.
It supports face recognition, 802.1X, CA certificates, portal, mobile registration, SMS, app, QR‑code review, Facebook and two‑factor authentication.
