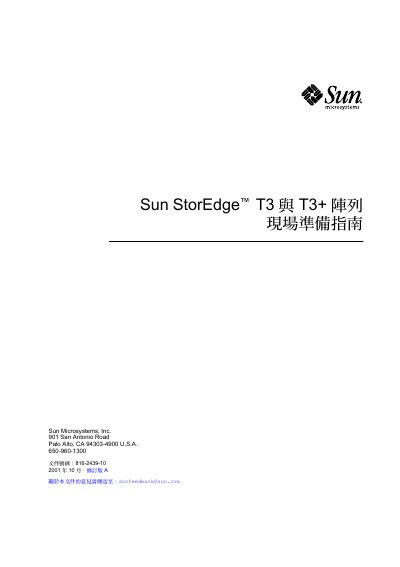

Sun T3 and T3+ Array On-site Preparation Guide

About this manual

This guide provides field technicians with the information needed to plan and prepare the installation of Sun StorEdge T3 and T3+ storage arrays. It includes product description, customer responsibilities, safety considerations, and equipment requirements such as environmental specifications and power specifications.

The document also details physical dimensions, cooling space, rack and desktop installation rules, cable specifications, and a pre‑installation checklist. Appendices cover standard 19‑inch rack guidelines, a glossary of terms, and references to related Sun documentation. This manual is written in Chinese.

What's inside

• Preface
• On‑site Planning Overview
• Equipment Safety
• Equipment Requirements
• Array Rack Removal
• Installation Requirements for Rack and Desktop
• Chassis and Rack Requirements
• Pre‑installation Checklist
• Glossary

Specifications

Frequently asked questions

How many Power and Cooling Units does a Sun StorEdge T3/T3+ array contain?

Each Sun StorEdge T3 or T3+ array contains two Power and Cooling Units (PCUs).

Is there a checklist to complete before installation?

Yes, Appendix B contains a pre‑installation work checklist to gather and record required information for a successful installation.
