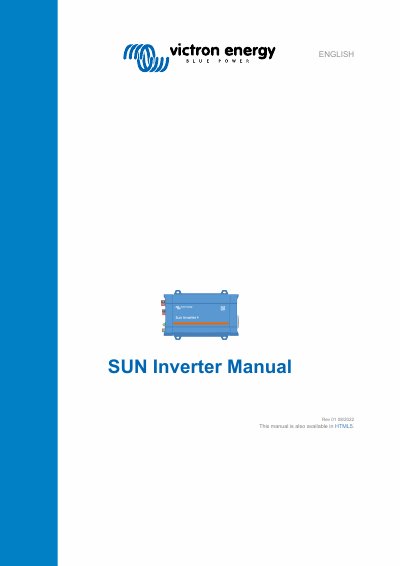

The SUN Inverter User Manual provides safety instructions, installation, configuration, operation, and technical specifications for the SUN inverter.
This manual covers safety instructions, general description, and installation guidelines for the SUN inverter, including mounting, electrical connections, and grounding requirements. It also explains the built‑in features such as the 3‑way ON/OFF/CHARGER‑ONLY switch, LED diagnostics, Bluetooth, VE.Direct port, and remote control options.
Configuration and operation sections describe how to set AC output voltage and frequency, enable ECO mode, adjust low‑battery alarms, and use the VictronConnect app for monitoring and firmware updates. The technical specifications at the end list power ratings, voltage ranges, and other key parameters.
| Continuous power at 25°C | 250 VA |
|---|---|
| Continuous power at 25°C (watts) | 200 W |
| Continuous power at 40°C | 175 W |
| Peak power | 400 W |
| Output AC voltage | 230 Vac ± 3 % |
| Output AC frequency (adjustable) | 50 Hz or 60 Hz ± 0.1 % |
| DC input voltage range | 9.2‑17 Vdc (12 V models) / 18.4‑34 Vdc (24 V models) |
| Low battery voltage shutdown (adjustable) | 9.3 Vdc (12 V models) / 18.6 Vdc (24 V models) |
The inverter is set by default to 230 Vac.
