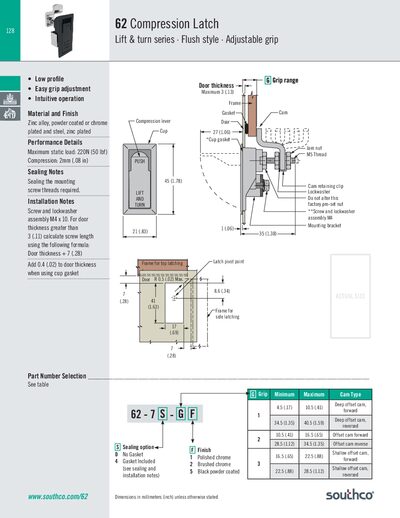

Technical data, installation instructions and part‑number selection for Southco 62 Compression Latch Lift & Turn series.
The Southco 62 Compression Latch Lift & Turn series provides a low‑profile, adjustable‑grip latch for flush‑style doors. The leaflet lists dimensions, material finishes, performance limits and sealing options for each latch variant.
Installation notes include screw‑length calculations based on door thickness, sealing requirements, and optional accessories such as cup gaskets and actuators. Part‑number tables help select the correct grip range, cam type and finish.
| Material | Zinc alloy, powder coated or chrome plated and steel, zinc plated |
|---|---|
| Maximum static load | up to 1250 N (280 lbf) depending on size |
| Compression | up to 5.5 mm (0.22 in) |
| Maximum door thickness | 6 mm (0.25 in) |
| Sealing method | Cup gasket and sealed mounting screw threads |
The latch can support up to 1250 N (280 lbf) depending on the specific size and cam type.
Add the door thickness to the base length (7 mm for doors ≤3 mm, 10 mm for doors >3 mm) and then add 0.4 mm when using a cup gasket.
Finishes include polished chrome, brushed chrome, textured chrome, black powder‑coated, and natural with protective film.
A cup gasket can be installed, and the mounting screw threads must be sealed for proper environmental protection.
