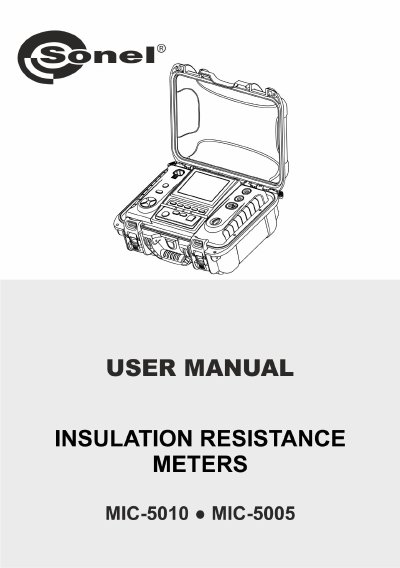

This user manual covers the safe operation, configuration, measurement procedures, data transmission, and technical specifications for the SONEL MIC-5010…
This document serves as the official user manual for the SONEL MIC-5010 and MIC-5005 insulation resistance meters. It provides comprehensive instructions for safe operation, including safety regulations, device configuration, and various measurement methods such as double-lead, three-lead, and dielectric discharge indicator tests. The guide also details how to manage measurement memory, transmit data via USB or wireless modules, and perform software updates.
| Measuring range (IEC 61557-2) | 50 kΩ to 15.0 TΩ |
|---|---|
| Output current limit | 1.2 mA or 3 mA |
| Test voltage accuracy | 0…+5% or 0…+10% of the set value |
| Frequency range | 45 to 65Hz |
| DC and increasing voltage measurement | VISO = 5 kV |
Surface currents will result in additional errors.
Do not use it for 30 minutes until the meter has warmed up to the new ambient temperature.
The message indicates insufficient voltage of the internal power supply.
