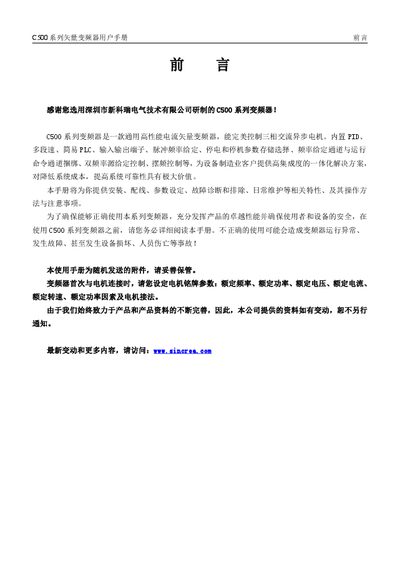

User manual for the Sincrea C500 series vector inverter covering safety, installation, operation, parameters and troubleshooting.
The Sincrea C500 series vector inverter is a high‑performance, current‑vector drive for three‑phase AC motors. This manual provides detailed instructions for safe installation, wiring, parameter setting, operation, and maintenance.
It also includes technical specifications, communication protocols, optional accessories, and warranty information to help users achieve reliable performance and proper upkeep of the inverter. This manual is written in Chinese.
| Input voltage (3‑phase) | 380~480 V |
|---|---|
| Power rating (example model) | 7.5/11 kW |
| Carrier frequency range | 1.0 kHz~16.0 kHz |
| Operating temperature range | -10 °C~+40 °C |
The inverter must be mounted on a non‑flammable surface, kept away from heat sources, and all wiring must be performed by qualified personnel with power disconnected.
The warranty period is eighteen months from the product’s shipment date.
