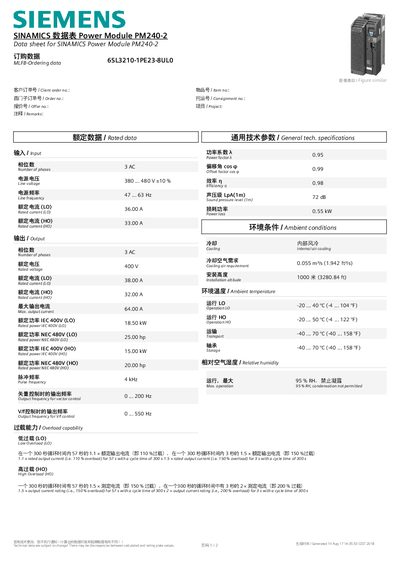

Technical data sheet for the SINAMICS PM240-2 power module, including ratings, dimensions, and compliance information.
The SINAMICS PM240-2 power module data sheet provides the rated electrical data, environmental limits, and mechanical dimensions for the product. It lists the nominal power, voltage, current, and efficiency values for both low‑overload (LO) and high‑overload (HO) operation.
Mechanical specifications such as protection class, dimensions, weight, and cable connections are also included, together with compliance to standards like CE marking and low‑voltage directives. The sheet notes that values are subject to change and may differ from name‑plate data.
| Rated power (HO) | 15.00 kW (20.00 hp) |
|---|---|
| Rated voltage (IEC) | 400 V |
| Rated voltage (NEC) | 480 V |
| Number of phases | 3 |
| Protection class | IP20 |
| Net weight | 16.00 kg |
The module is rated at 15.00 kW (20.00 hp) for high‑overload operation.
It has an IP20 protection class.
The net weight is 16.00 kg (35.27 lb).
