Simplex 4100ES/4100U Fire Alarm Control Panel Features

This document details the features, modules, and specifications for Simplex 4100ES/4100U Fire Alarm Control Panels, including LED/switch modules and I/O…

Brand: Simplex
Category: Other Electronics
Document type: Product Leaflet
Language: English
Pages: 8
File format: PDF
File size: 515 KB
Published: 17 October, 2026
Updated: 17 October, 2026
MD5 checksum: B057FB203CD71A8620D8817F36A7B042
PDF: Simplex 4100ES/4100U Fire Alarm Control Panel Features PDF

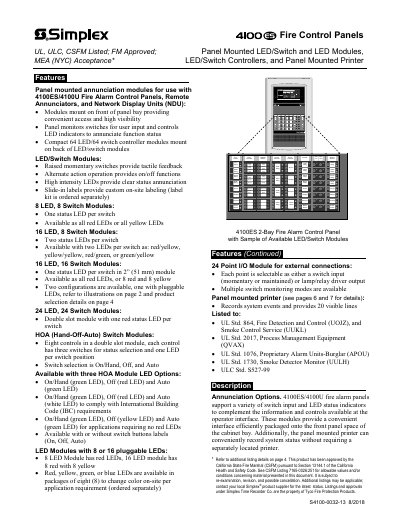

About this manual

This document provides detailed information about the features of the Simplex 4100ES/4100U Fire Alarm Control Panels. It covers panel-mounted annunciation modules, remote annunciators, and network display units. The text describes various LED and switch modules, including 8, 16, and 24-point configurations, as well as Hand-Off-Auto (HOA) control modules with different LED color options to meet specific code requirements like the International Building Code (IBC).

What's inside

Panel mounted annunciation modules
LED/switch modules
HOA Switch Modules
LED Modules
24 Point I/O Module
Panel mounted printer
Listings and approvals
Product selection details

Specifications

Listings	UL Std. 864, UL Std. 2017, UL Std. 1076, UL Std. 1730, ULC Std. S527-99
CSFM Approval	California State Fire Marshal approved
Module Height	8-1/4" H, 2" W

Frequently asked questions

What LED colors are available for HOA modules?

HOA modules are available with Green/Red/Green, Green/Red/White, or Green/Yellow/Green LEDs.

Are the LED modules listed for IBC applications?

Yes, specific HOA modules with Green/Red/White LEDs are available to comply with International Building Code (IBC) requirements.
