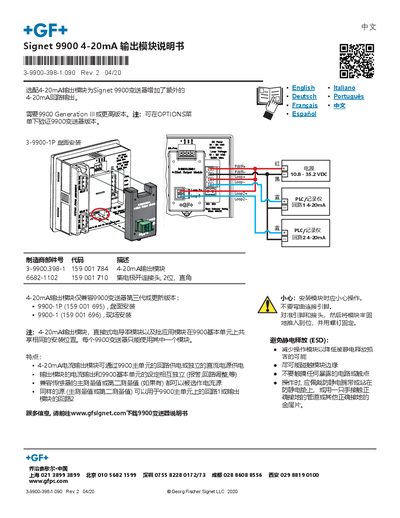

Signet 9900 4-20mA Output Module Installation Guide

About this manual

This document provides information on the Signet 9900 4-20mA output module, which is compatible with Generation III or newer versions of the Signet 9900 transmitter. The module adds an additional 4-20mA loop output to the main unit. This manual is written in Chinese.

What's inside

• Compatibility
• Features
• Installation Instructions
• Power Supply
• Electrical Connections
• ESD Precautions
• Part Numbers
