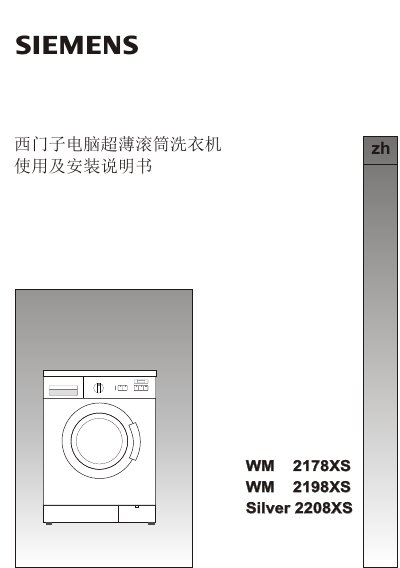

Installation and user guide for Siemens WM 2178XS, WM 2198XS and WM 2208XS thin‑profile front‑load washing machines.
This manual provides safety instructions, installation steps, and operating procedures for the Siemens WM 2178XS, WM 2198XS and WM 2208XS thin‑profile front‑load washing machines. It includes details on wiring, water connections, transport bolt removal, and initial test cycles.
The guide also covers proper use of detergent compartments, program selection, cleaning and maintenance, troubleshooting, and contact information for Siemens customer service. This manual is written in Chinese.
| 额定电压 | 220V~ |
|---|---|
| 电源频率 | 50Hz |
| 洗涤容量 | 4.5kg |
| 脱水容量 | 4.5kg |
| 水压范围 | 0.1~1MPa |
| 防水等级 | IPX4 |
| 洗涤功率 | 200W |
| 脱水功率 | 450W |
| 加热功率 | 1800W |
| 最大功率 | 2000W |
| 最大电流 | 10A |
| 尺寸 (宽×深×高) | 595mm × 400mm × 860mm |
| 重量 | 65kg |
You can download the English user manual from the Siemens website or request it by emailing the service department.
The maximum washing capacity for cotton and colored fabrics is 4.5 kg.
The water pressure must be between 0.1 MPa and 1 MPa.
The power plug must be inserted into a grounded three‑pole socket and the grounding must be verified.
