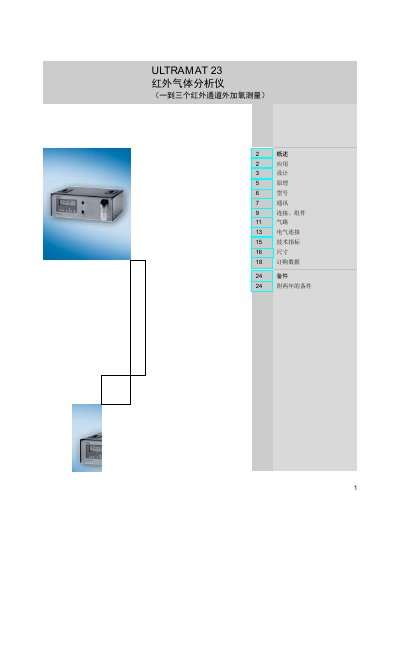

Siemens ULTRAMAT 23 Infrared Gas Analyzer User Manual

About this manual

The Siemens ULTRAMAT 23 is an infrared gas analyzer capable of simultaneously measuring up to four gas components. It utilizes non-dispersive infrared absorption for gases such as CO, NO, SO2, CH4, and R22, while employing a fuel cell principle for oxygen measurement. The device supports various configurations including single, dual, or triple component setups with optional pump integration. This manual is written in Chinese.

What's inside

• 概述
• 应用
• 基本特性
• 设计和气路
• 显示和控制面板
• 测量原理
• 通讯

Frequently asked questions

What gases can the ULTRAMAT 23 measure simultaneously?

The analyzer can measure up to three infrared gas components such as CO, NO, SO2, CH4, or R22, and can also measure oxygen using an electrochemical cell.

What is the minimum certified measurement range for carbon monoxide on a single-component analyzer?

The minimum certified range for CO on a single-component analyzer is 0 to 150 mg/ms.

What happens if the sample gas flow drops below 1 l/min?

The system will issue an alarm signal when the gas flow is less than 1 l/min.
