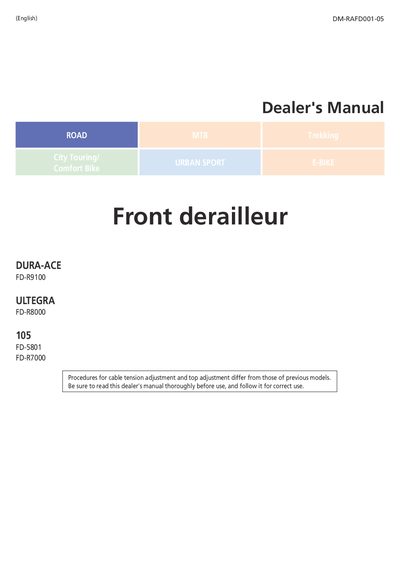

Shimano Front Derailleur Dealer's Manual (FD-R9100/R8000/5801/R7000)

About this manual

This dealer's manual provides professional bicycle mechanics with detailed instructions for the installation, adjustment, and maintenance of Shimano front derailleurs. It covers specific models including DURA-ACE FD-R9100, ULTEGRA FD-R8000, 105 FD-5801, and FD-R7000. The document emphasizes safety warnings for professional use only and outlines procedures for both brazed-on and band-type frame installations.

What's inside

• Important Notice
• To Ensure Safety
• List of Tools to be Used
• Installation (Brazed-on type)
• Installation (Band type)
• Adjustment (Cable tension)
• Top adjustment
• Low adjustment
• Troubleshooting chart
• Maintenance

Specifications

Frequently asked questions

Who is this manual intended for?

This dealer's manual is intended primarily for use by professional bicycle mechanics.

What tools are required for installation and maintenance?

The required tools include 2 mm, 5 mm, and 4 mm hexagon wrenches and nippers.

What is the recommended clearance between the chain guide outer plate and the largest chainring?

There should be a clearance of 1 – 3 mm between the chain guide outer plate and the largest chainring.
