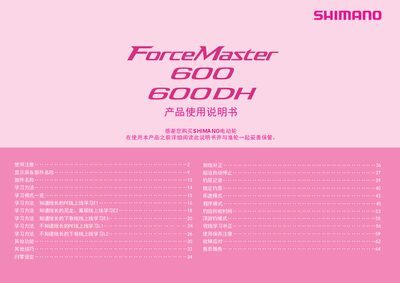

SHIMANO Electric Reel User Manual

About this manual

This manual covers safety precautions, proper voltage usage, and handling instructions for the SHIMANO electric reel. It explains the display screen components, learning methods for line length, and various operating modes such as Pick Up, program, and speed modes.

Additional sections describe maintenance care, fault handling, after‑sales service, and how to adjust settings like zero calibration and load display. The document also includes detailed warnings about battery voltage, water exposure, and proper installation of power cables. This manual is written in Chinese.

What's inside

• 安全注意事项
• 显示屏各部件名称
• 学习方法
• 其他功能
• 使用保养注意
• 故障应对
• 售后服务
• 归零设定
• 电动收线负荷显示
• 自动跳闸功能

Specifications

Frequently asked questions

What voltage range should be used with the SHIMANO electric reel?

Use a DC supply between 12 V and 14.8 V; do not use AC power or voltages above this range.

What should I do if the LCD screen shows no display?

Check that the battery and power cables are correctly connected, verify the battery voltage, and ensure the device is not operating below –15 °C.

How can I correct the boat‑edge stop position error?

Use the [归零设定] (zero‑set) function to recalibrate the stop position.

What does the load display indicate?

When enabled, it shows a numeric value (0‑9) representing the line‑pull force based on the caught fish’s weight.
