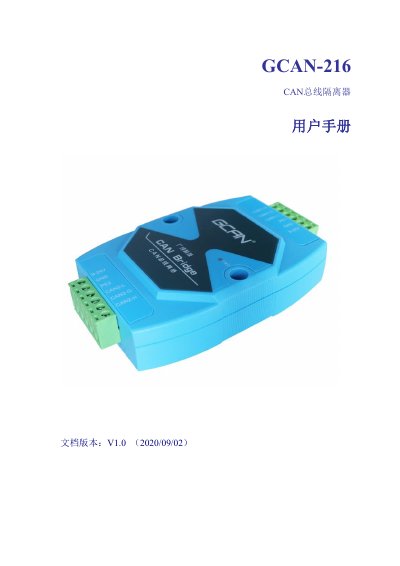

Shenyang Guangcheng Technology GCAN-216 Industrial CAN Bus Isolator User Manual

About this manual

The GCAN-216 is a high-performance industrial CAN bus isolator manufactured by Shenyang Guangcheng Technology. It integrates two CAN interfaces supporting CAN 2.0A and 2.0B frame formats with electrical isolation protection. The device is designed for use in automotive, power communication, and industrial control networks, offering a baud rate range of 10K to 500Kbps. This manual is written in Chinese.

What's inside

• Function Overview
• Performance Features
• Typical Applications
• Device Installation
• Interface Definitions
• CAN Bus Connection
• Terminal Resistors
• Status Indicators
• Technical Specifications
• CAN 2.0 Protocol Format

Frequently asked questions

What is the GCAN-216 module designed to do?

The GCAN-216 module is an industrial CAN bus isolator that integrates two CAN interfaces for high-performance communication isolation.

What voltage range does the device require?

The GCAN-216 module uses an external power supply with a DC9-24V input.

How should the CAN bus lines be connected to establish communication?

To connect, link the CAN_H line to CAN_H and the CAN_L line to CAN_L.
