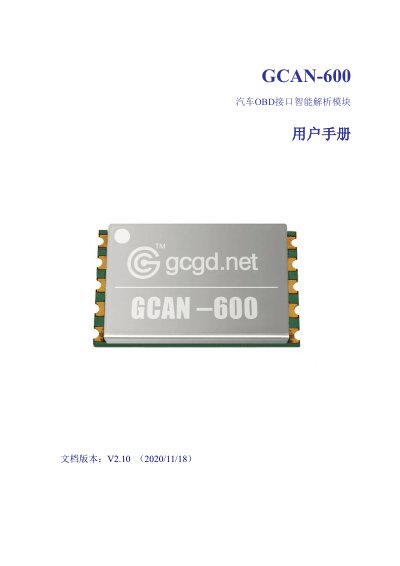

Shenyang Guangcheng Technology GCAN-600 Automotive OBD Intelligent Analysis Module User Manual

This manual covers the operation, technical specifications, and AT command usage for the Shenyang Guangcheng Technology GCAN-600 automotive CAN bus analysis…

Brand: Shenyang Guangcheng Technology
Category: Other Electronics
Document type: User Manual
Language: Chinese
Pages: 31
File format: PDF
File size: 1.7 MB
Published: 12 October, 2026
Updated: 12 October, 2026
MD5 checksum: 9C62FBC0A165896C5895BC69961F38DB
PDF: Shenyang Guangcheng Technology GCAN-600 Automotive OBD Intelligent Analysis Module User Manual PDF

About this manual

The GCAN-600 is a smart analysis module designed for automotive electronic development and decoding. It connects to vehicle ECU systems via the OBD interface to retrieve real-time data, statistics such as fuel consumption, and diagnostic trouble codes (DTCs). The module supports multiple automotive protocols including CANBUS at 250Kbit/s and 500Kbit/s. This manual is written in Chinese.

What's inside

Function Overview
Performance Features
Typical Applications
Technical Specifications
Pin Definitions
Module Interface Functions
AT Commands
GCAN-600 EVAL Board

Specifications

Operating Temperature	-40 ℃ ~+85 ℃
Dimensions	12mm * 18mm * 4mm
Supply Voltage	+3.3V DC
Max Supply Current	70mA
UART Baud Rate Support	57600bps
CAN Protocol Standard	ISO 11898, CAN2.0A/B

Frequently asked questions

What is the operating temperature range of the GCAN-600?

The module operates within a temperature range of -40 ℃ to +85 ℃.

What supply voltage is required for the GCAN-600?

The module requires a DC power supply of +3.3V.

Which CAN protocols does the GCAN-600 support?

It supports ISO 11898 standard, compatible with CAN2.0A and CAN2.0B.
