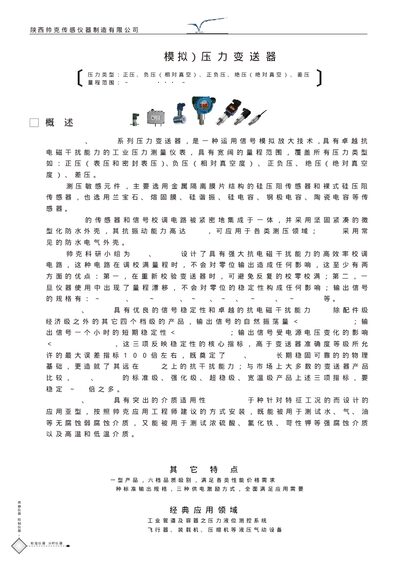

The user manual for Shanxi Shuaike C23 and C800 analog pressure transmitters provides specifications, wiring, calibration and installation guidance.
The C23 and C800 series are analog pressure transmitters that use signal‑amplification technology and offer high immunity to electromagnetic interference. They cover a wide range of pressure types—including positive, negative, differential, absolute and gauge pressures—and provide multiple output signal options.
This manual details the performance parameters, electrical and physical specifications, wiring diagrams, installation notes, calibration procedures, and selection guidelines for different application sub‑types. It also includes information on environmental limits, IP ratings, and recommended power supplies. This manual is written in Chinese.
| Measurement range | 0 ~ 0.5 kPa … 0 ~ 260 MPa |
|---|---|
| Supported pressure types | Positive, negative, positive‑negative, absolute, differential |
| Accuracy | ±0.5%FS, ±0.25%FS, ±0.1%FS |
| Output signal options | 4–20 mA, 0.5–4.5 V, 1–5 V, 0–5 V, 0–10 V, 0–20 mA |
| Supply voltage | 24 VDC, 12 VDC (optional), 5 VDC |
| Temperature compensation range | 0 ~ 50 °C (accessory level) |
| Vibration resistance (C23) | up to 15 g |
| IP rating | IP65, IP67, IP68 |
| Probe material | Stainless steel (321, 316L, 304L, etc.) |
| Weight | ≈150 g ~ 10 kg |
The transmitters can output 4–20 mA, 0.5–4.5 V, 1–5 V, 0–5 V, 0–10 V or 0–20 mA depending on the selected configuration.
The C23 series can withstand vibration up to 15 g.
They can be powered by 24 VDC, 12 VDC (optional) or 5 VDC.
The devices are available with IP65, IP67 or IP68 ratings.
