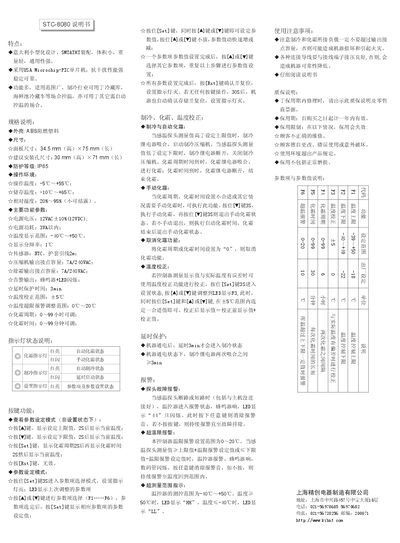

The STC-8080 temperature controller manual from Shanghai Jingchuang details features, specifications, operation, alarm functions and warranty.
The STC-8080 is a compact temperature controller designed for refrigeration applications such as cold storage rooms, seafood pools and refrigerated trucks. It uses a USA Microchip‑PIC microcontroller and offers a range of functions including cooling, automatic and manual defrost, temperature calibration and alarm monitoring.
The manual explains how to set temperature limits, adjust defrost cycles, handle alarm conditions, and perform basic maintenance. It also provides the electrical specifications, environmental limits, and warranty information required for proper installation and safe operation. This manual is written in Chinese.
| Power supply voltage | 12VAC±10% (12VDC) |
|---|---|
| Power consumption | ≤ 3VA |
| Temperature display range | -40 °C to +50 °C |
| Sensor type | NTC thermistor, 2 m insulated lead |
| Compressor output contact rating | 7 A / 240 VAC |
| Defrost output contact rating | 7 A / 240 VAC |
| Alarm output | Buzzer + flashing LED |
| Delay protection time | 3 min |
| Temperature calibration range | ± 5 °C |
| Temperature alarm adjustment range | 0 °C to 20 °C |
| Defrost cycle range | 0–99 hours (adjustable) |
| Defrost time range | 0–99 minutes (adjustable) |
| IP protection rating | IP65 |
| Operating temperature range | -5 °C to +55 °C |
| Storage temperature range | -10 °C to +65 °C |
| Relative humidity range | 20 %–95 % (non‑condensing) |
| Enclosure material | Flame‑retardant ABS plastic |
Set the defrost cycle or the defrost time to 0, which disables the defrost feature.
If temperature reaches +50 °C the LED shows “HH”; if it falls to –40 °C the LED shows “LL”.
