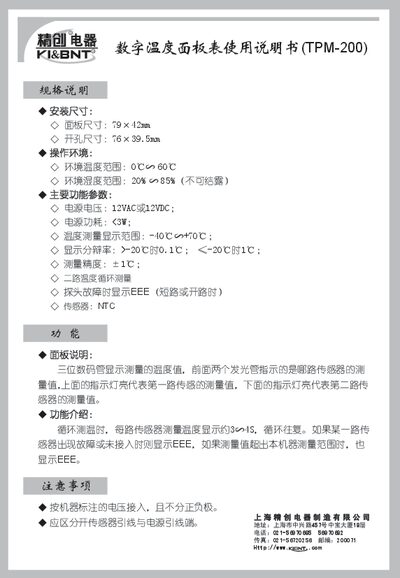

The RR TPM-200 digital temperature panel manual provides installation dimensions, operating environment, specifications, panel description, and usage notes.
This manual describes the physical dimensions of the TPM-200 panel (79×42 mm) and the required opening size (76×39.5 mm) for installation. It also outlines the permissible operating temperature (0 °C – 60 °C) and humidity (20 % – 85 %, no condensation) conditions.
Technical details include power requirements (12 VAC or 12 VDC, <3 W), measurement range (-40 °C – +70 °C), display resolution (0.1 °C above –20 °C, 1 °C at or below –20 °C), accuracy (±1 °C), and sensor type (NTC). The panel shows temperature values on a three‑digit display with indicator LEDs for each sensor, and fault conditions are indicated by “EEE”. This manual is written in Chinese.
| Panel size | 79×42 mm |
|---|---|
| Opening size | 76×39.5 mm |
| Operating temperature range | 0 °C – 60 °C |
| Operating humidity range | 20 % – 85 % (no condensation) |
| Power supply voltage | 12 VAC or 12 VDC |
| Power consumption | <3 W |
| Temperature measurement range | -40 °C – +70 °C |
| Display resolution | 0.1 °C (>‑20 °C), 1 °C (≤‑20 °C) |
| Sensor type | NTC |
The TPM-200 can be powered by either 12 VAC or 12 VDC.
It measures temperatures from -40 °C to +70 °C.
When a sensor is shorted, open, or out of range, the display shows “EEE”.
