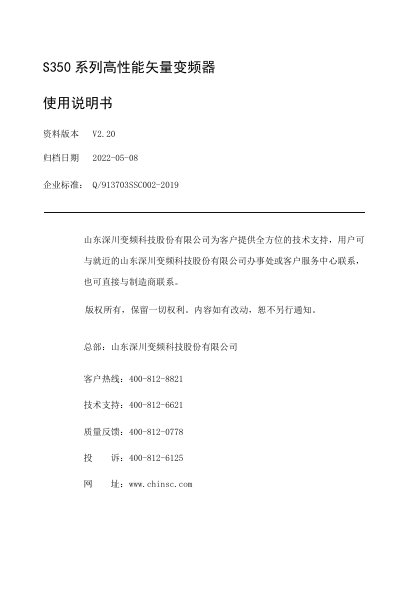

This manual covers the installation, operation, parameter settings, communication protocols, and troubleshooting for the Shandong Shenchuan S350 series…
The document serves as a comprehensive user guide for the Shandong Shenchuan S350 Series High-Performance Vector Inverter. It provides detailed instructions on safety precautions, product specifications including naming rules and electrical data, and mechanical installation dimensions.
The manual guides users through operating procedures such as using the dual-display keyboard to modify parameters and monitor status via indicator lights (RUN, REMOT, REV, FAULT). It includes extensive tables for functional parameters, communication protocols, and a troubleshooting section addressing common faults and their solutions. This manual is written in Chinese.
| Input Voltage (T4 Series) | Three-phase 380V, ±15% |
|---|---|
| Frequency | 50/60Hz ±5% |
| Output Voltage (T4 Series) | Three-phase 0～380V |
| Overload Capability (G Type) | 150% rated current for 1 minute; 180% for 3s |
| Control Modes | Open-loop vector control, V/F control, Torque control |
It must be done by electrical professional technicians to avoid electric shock hazards.
The measured insulation resistance must not be less than 5MΩ when using a 500V megohmmeter.
One must wait more than 5 minutes for the filter capacitors to discharge until the bus voltage is below 36V.
