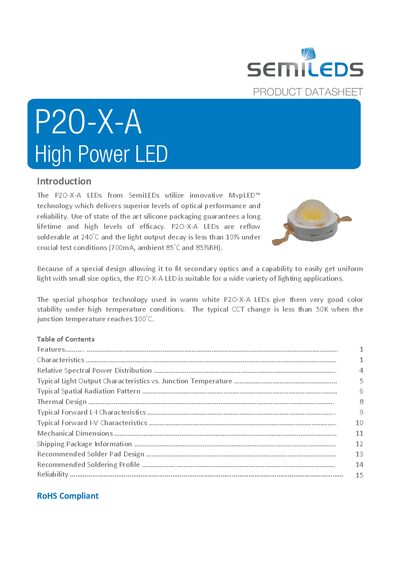

The SemiLEDs P2O-X-A High Power LED datasheet provides specifications, performance curves, thermal design, soldering guidelines, and reliability data.
The P2O‑X‑A series from SemiLEDs uses M vpLED™ technology to deliver high efficacy, low thermal resistance, and excellent color stability for a wide range of lighting applications. The LEDs are reflow‑solderable at 240 °C and maintain less than 10 % light output decay under harsh test conditions.
The datasheet includes detailed electrical ratings, luminous flux values, thermal resistance (10 °C/W), recommended solder pad dimensions, soldering profiles, and extensive reliability test results. It also confirms RoHS compliance and provides mechanical dimensions and shipping information.
| DC Forward Current | 700 mA |
|---|---|
| LED Junction Temperature (White series) | 150 °C |
| LED Operating Temperature | -40 °C to 110 °C |
| Storage Temperature | -40 °C to 110 °C |
| Maximum Soldering Temperature | 260 °C for 10 s |
| Thermal Resistance (Junction‑to‑Lead) | 10 °C/W |
| ESD Sensitivity | 2,000 V HBM |
| Reverse Voltage | ≤5 V (not designed for reverse bias) |
| RoHS Compliance | Yes |
The LED can be soldered up to 260 °C for a maximum of 10 seconds.
The thermal resistance (junction‑to‑lead) is 10 °C per watt.
Yes, the datasheet states that the LED is RoHS compliant.
The datasheet lists a DC forward current of 700 mA.
