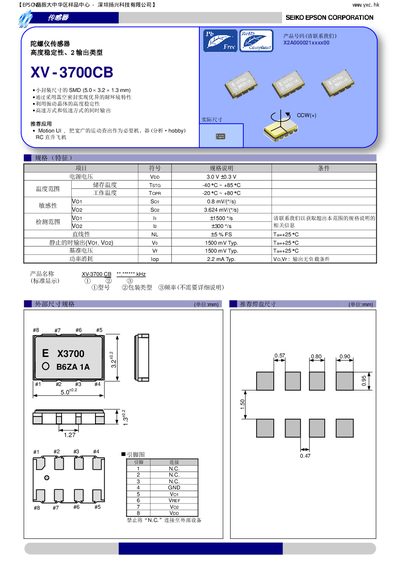

The document is a datasheet for the Seiko Epson XV-3700 CB gyroscope sensor. It details the sensor's electrical specifications, such as power supply voltage, operating temperature range, sensitivity, and detection range. The sensor features a small SMD package and offers dual output types for high-speed and low-speed applications. This manual is written in Chinese.
| Power Supply Voltage | 3.0 V ±0.3 V |
|---|---|
| Operating Temperature | -20 °C ~ +80 °C |
| Sensitivity (VO1) | 0.8 mV/(°/s) |
| Sensitivity (VO2) | 3.624 mV/(°/s) |
| Detection Range (VO1) | ±1500 °/s |
| Detection Range (VO2) | ±300 °/s |
| Package Dimensions | 5.0 x 3.2 x 1.3 mm |
The operating temperature range is from -20 °C to +80 °C.
It is recommended for Motion UI, RC helicopters, and analyzing hobby machines.
