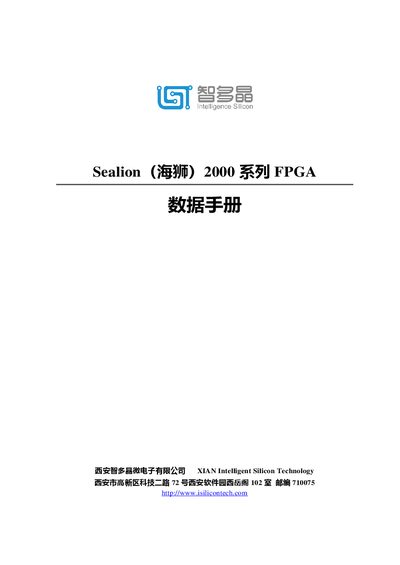

Sealion 2000 Series FPGA datasheet provides specifications, architecture, resources, I/O and electrical characteristics.
The Sealion 2000 Series FPGA family offers low‑power 55 nm devices in four sizes (5K, 7K, 12K, 25K) with up to 24 800 logic units, 865 Kbit distributed memory and a rich set of embedded resources such as DSP multipliers, flash and SDR/DDR2 interfaces. The devices support a wide voltage range (1.2 V core, 1.2/2.5/3.3 V I/O) and feature up to 336 user I/Os, high‑speed video and MIPI interfaces, and multiple clocking options including PLL and DLL.
The datasheet details the device architecture, logic block organization, memory modules, clock networks, I/O standards, programming modes, and both DC and AC electrical characteristics. It also includes package options, temperature ratings (‑40 °C to 100 °C for industrial grade) and timing parameters for various configuration interfaces.
| Logic Units | up to 24 992 |
|---|---|
| Maximum User I/O Pins | 336 |
| Operating Temperature (Industrial) | -40 °C to 100 °C |
| Maximum Frequency (Fmax) | 400 MHz |
The series provides devices with 5K, 7K, 12K and 25K logic capacities, offering between 5 040 and 24 992 logic units.
Industrial‑grade devices operate from –40 °C to 100 °C.
The FPGA supports up to 336 effective user I/O pins.
