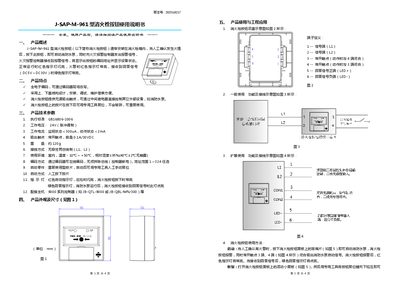

The Sanjiang J-SAP-M-961 fire hydrant button manual provides installation, operation, maintenance, and troubleshooting instructions.
The J-SAP-M-961 fire hydrant button is an electronic fire‑alarm device installed in fire hydrant boxes. When a fire is confirmed, pressing the button starts the fire pump and sends a signal to the fire alarm controller. It features a fully electronic address that can be programmed on‑site, a simple upper‑lower cover design, and a reusable press‑plate that can be reset with a special tool.
The manual covers product overview, technical specifications, wiring diagrams, installation steps, normal operation, reset procedures, regular maintenance, and fault analysis. It also includes safety notes, wiring requirements, and compliance with GB50116‑98 and GB50166‑2007 fire‑alarm system standards. This manual is written in Chinese.
| Working voltage | 24V (pulse modulation) |
|---|---|
| Working current (monitor state) | <300 µA |
| Working current (action state) | <2 mA |
| Output contact rating | 0.1 A / 30 VDC (normally open) |
| Weight | ≈120 g |
| Operating temperature range | -10 °C ~ +50 °C |
| Maximum relative humidity | ≤95 % (40 °C ± 2 °C, no condensation) |
| Wiring method | Non‑polar two‑bus (L1, L2) |
| Address range | 1 ~ 324 |
The red indicator flashes during normal monitoring and stays solid when the button is pressed; the green indicator lights when a response signal (DC5V‑DC30V) is received from the fire pump.
The button must be tested at least once each quarter and is recommended to receive a full maintenance check once a year.
Yes, the address can be programmed on‑site using an encoder without removing the bus, but the controller should be powered off first.
