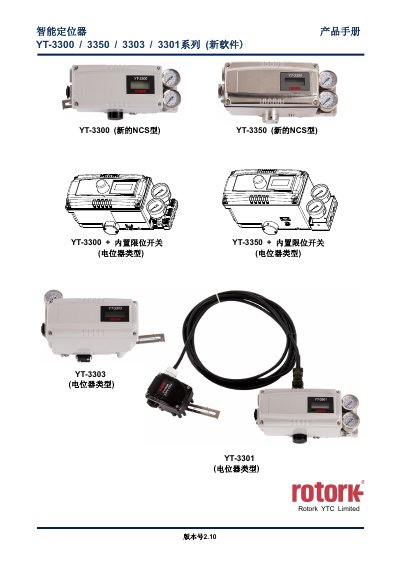

Rotork YTC Limited Intelligent Positioner YT-3300/3350/3303/3301 Series User Manual

This manual covers installation, connection, adjustment, maintenance, and operation of the Rotork YTC Limited YT-3300 series intelligent valve positioners.

Brand: Rotork YTC Limited
Category: Industrial Robot
Document type: User Manual
Language: Chinese
Pages: 116
File format: PDF
File size: 7.6 MB
Published: 17 October, 2026
Updated: 17 October, 2026
MD5 checksum: B1E606C583E8E7240FE58240F20829E3
PDF: Rotork YTC Limited Intelligent Positioner YT-3300/3350/3303/3301 Series User Manual PDF

About this manual

The document is a user manual for the Rotork YTC Limited Intelligent Positioner series, specifically models YT-3300, YT-3350, YT-3303, and YT-3301. It provides comprehensive instructions on product description, installation (both linear and rotary actuators), air and power connections, and adjustment procedures. This manual is written in Chinese.

What's inside

Introduction
Product Description
Installation
Connection - Air
Connection - Power
Adjustment
Maintenance
Automatic Calibration
Device Configuration
Diagnosis Mode

Specifications

Input Signal Range	4 ~ 20 mA
Recovery Time after Power Loss	0.5 seconds
Protection Rating (Linear)	IP66, Type 4X

Frequently asked questions

What is the operating temperature range for the remote sensor YT-3301?

The YT-3301 remote sensor operates between -40 and 120 °C.

How long does it take for the positioner to start after a short power outage?

The positioner starts up in just 0.5 seconds.
