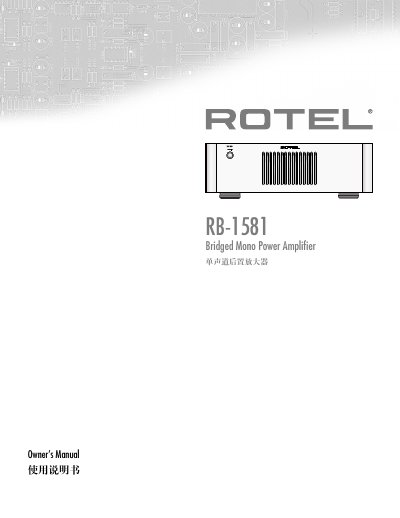

The Rotel RB-1581 Bridged Mono Power Amplifier user manual provides safety instructions, setup, wiring, specifications, and troubleshooting guidance.
This manual explains how to install, connect, and operate the Rotel RB-1581 Bridged Mono Power Amplifier. It covers safety precautions, power requirements, trigger functions, and speaker wiring to ensure optimal performance and reliable operation.
Key sections include safety warnings, placement guidelines, AC power and trigger controls, input and speaker connection methods, and a troubleshooting guide with fuse replacement and protection indicator information.
| Power output (8 Ω load) | 500 W |
|---|---|
| Minimum speaker impedance (combined load) | 4 Ω |
| AC line voltage (USA) | 120 V / 60 Hz |
| Required clearance around unit | 10 cm (4 inches) |
Use insulated two‑conductor stranded wire, connect it to the color‑coded binding posts, ensure no loose strands, and keep polarity consistent.
The PROTECTION LED lights when the internal thermal or over‑current protection circuit activates; turn the unit off, let it cool, then power it on again.
Set the back‑panel toggle switch to the +12 V TRIGGER ON position, connect a +12 V signal to the TRIGGER IN jack, and keep the front‑panel power switch ON.
Leave at least 10 cm (4 inches) of unobstructed space on all sides to allow proper ventilation.
