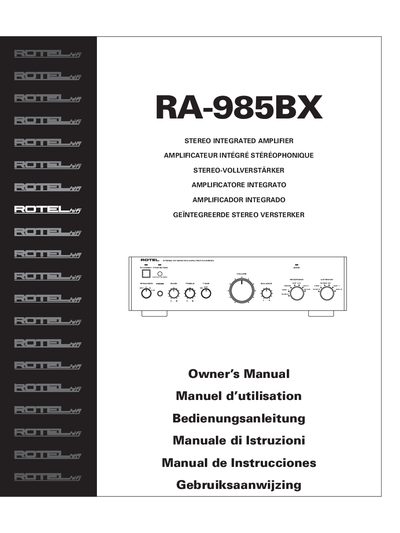

This manual covers safety precautions, placement recommendations, and wiring instructions for the Rotel RA-985BX stereo integrated amplifier. It explains power connections, input and recorder wiring, auxiliary power outlets, and the optional second‑zone output system.
Detailed sections describe the preamp/power‑amp jumpers, cassette remote connector, remote sensor extension system, and troubleshooting tips such as fuse replacement and protection indicator behavior. Technical specifications for output power, frequency response, and dimensions are listed at the end of the document.
| Input Sensitivity / Impedance | 150 mV / 15 kΩ |
|---|---|
| Power Consumption | 400 W |
| Dimensions (W × H × D) | 440 mm × 121 mm × 347 mm |
| Net Weight | 10.1 kg |
Leave at least 10 cm (4 inches) of unobstructed clearance around the unit to ensure proper ventilation.
A phono turntable requires an external phono equalizer, such as the Rotel RO‑970BX, before connecting to the RA‑985BX line inputs.
