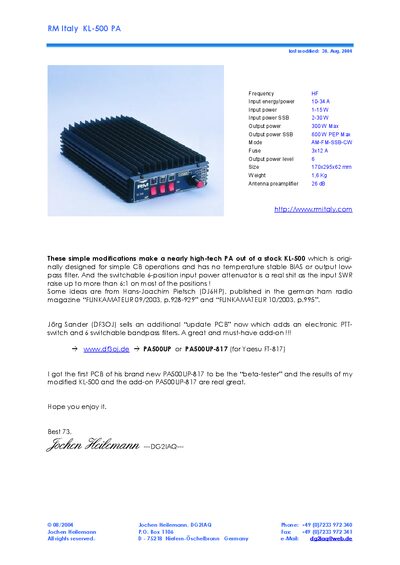

This guide details hardware modifications for the RM Italy KL-500 PA to improve bias stability, reduce noise, and add external PCB features.
The document provides step‑by‑step modifications for the RM Italy KL-500 power amplifier, originally designed for simple CB use. It explains why the stock unit lacks a temperature‑stable bias supply and proper low‑pass filtering, and introduces an external PCB (PA500UP) that adds an electronic PTT switch and selectable band‑pass filters.
Key changes include replacing diodes and fuses, installing a 78S09 voltage regulator for a stable bias, adding a low‑noise fan, upgrading the power cord, and fitting the PA500UP‑817 add‑on board. Performance data and audio test files illustrate the resulting noise reduction and increased output clarity.
| Input power | 1-15 W |
|---|---|
| Output power | 300 W |
| Max output power (SSB) | 600 W |
| Size | 170x295x62 mm |
| Weight | 1.6 Kg |
