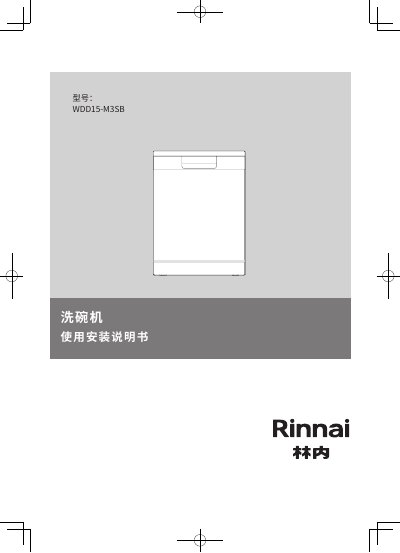

This manual provides safety warnings, installation steps, usage instructions, maintenance guidance, and specifications for the Rinnai WDD15-M3SB dishwasher.
The guide begins with safety warnings and installation requirements, including power connection, water pressure (0.04‑1.00 MPa), and proper placement of the appliance. Detailed installation steps, accessory lists, and service information are provided to ensure correct setup by a qualified technician.
Subsequent sections cover everyday use: adding special salt, rinse aid, and detergent; loading dishes; operating cycles; fault handling; and product specifications such as dimensions, power rating, water consumption, and capacity. Warranty and service procedures are also included. This manual is written in Chinese.
| Dimensions (W×H×D) | 600 mm × 805 mm × 600 mm |
|---|---|
| Rated Voltage | 220 V |
| Rated Frequency | 50 Hz |
| Rated Power | 1828 W |
| Water Consumption per Cycle | 11 L |
| Energy Consumption per Cycle | 1.04 kWh |
| IP Rating | IPX1 |
| Dishware Capacity | 15 place settings |
| Net Weight | 47.3 kg |
| Gross Weight | 54.3 kg |
The recommended inlet water pressure is between 0.04 MPa and 1.00 MPa.
The whole machine is covered for one year, while the controller and motor are covered for three years.
