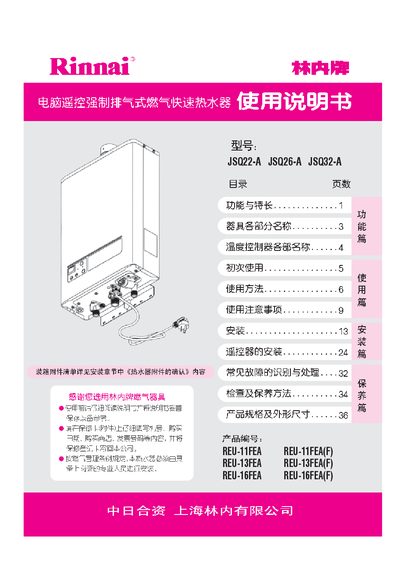

Detailed introduction of JSQ22-A, JSQ26-A, JSQ32-A, REU-11FEA, REU-13FEA, REU-16FEA, REU-11FEA(F), REU-13FEA(F), REU-16FEA(F) products
This manual covers safety requirements, installation procedures, and the features of the Rinnai JSQ series gas water heaters. It includes a parts list, wiring diagrams, and instructions for connecting up to two additional bathroom remote controllers.
The guide explains how to operate the temperature controller, set water temperature, and use the remote control. It also details common fault codes, maintenance tips, and technical specifications such as temperature range, pressure limits, and model numbers. This manual is written in Chinese.
| Temperature setting range | 35 °C ~ 60 °C |
|---|---|
| Number of temperature steps | 16 |
| Additional remote controllers | Up to 2 bathroom remotes |
Use the temperature control buttons; the temperature can be set between 35 °C and 60 °C in 16 steps.
The system allows up to two extra bathroom remote controllers to be installed.
