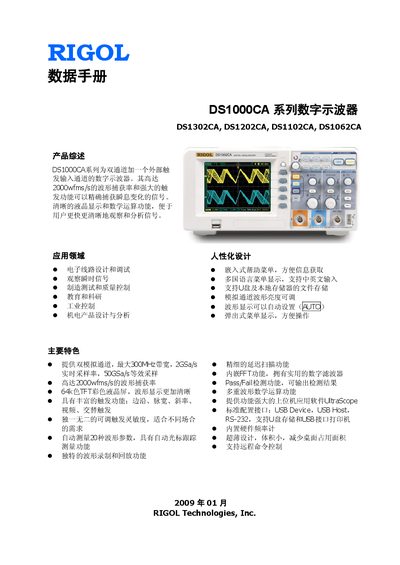

Technical datasheet for the RIGOL DS1000CA series digital oscilloscopes, covering models DS1302CA, DS1202CA, DS1102CA, and DS1062CA with specifications.
This document is a technical datasheet for the RIGOL DS1000CA series digital oscilloscopes, specifically covering the DS1302CA, DS1202CA, DS1102CA, and DS1062CA models. It details the main features, including dual analog channels, bandwidth up to 300MHz, and a real-time sampling rate of 2GSa/s. This manual is written in Chinese.
| Bandwidth | 300MHz / 200MHz / 100MHz / 60MHz |
|---|---|
| Real-time Sampling Rate | 2GSa/s |
| Equivalent Sampling Rate | 50GSa/s |
| Waveform Capture Rate | 2000wfms /s |
| Display | 64k color TFT LCD |
| Input Impedance | 1MΩ±2% / 50Ω±2% |
| Max Input Voltage | 300V (10X) / 5V (50Ω) |
| Storage Depth | 10k points (single channel) |
| Power Supply | 100-240 VAC RMS |
| Operating Temperature | 10℃~+40℃ |
| Dimensions | 303 x 154 x 133 mm |
The series includes the DS1302CA, DS1202CA, DS1102CA, and DS1062CA models.
The maximum real-time sampling rate is 2GSa/s.
Yes, it supports USB Device and USB Host interfaces for storage.
The waveform capture rate is up to 2000wfms/s.
