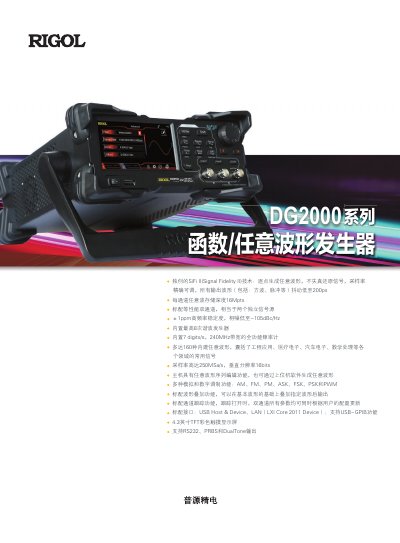

The RIGOL DG2000 series function/arbitrary waveform generator manual provides specifications, operation, modulation, and safety information.
The DG2000 series from RIGOL is a dual‑channel function and arbitrary waveform generator featuring the proprietary SiFi II technology. It offers up to 250 MSa/s sampling rate, 16‑bit vertical resolution, and a 4.3‑inch TFT touch display for intuitive control.
The instrument supports a wide range of waveforms (160 built‑in arbitrary shapes), multiple modulation types (AM, FM, PM, ASK, FSK, PSK, PWM), and includes built‑in frequency counter, sweep, and protection features such as over‑voltage and over‑current safeguards. Detailed technical specifications, connector options, and optional accessories are listed throughout the manual. This manual is written in Chinese.
| Sampling rate | 250 MSa/s |
|---|---|
| Vertical resolution | 16 bits |
| Output impedance | 50 Ω (typical) |
| Power consumption | < 30 W |
| Display | 4.3‑inch TFT LCD with touch |
| Weight (without packaging) | 3.2 kg |
The instrument includes over‑voltage protection and over‑current protection to prevent damage.
The DG2000 series contains 160 built‑in arbitrary waveforms.
It supports AM, FM, PM, ASK, FSK, PSK, and PWM modulation.
Each channel can store up to 16 Mpts of arbitrary waveform data.
