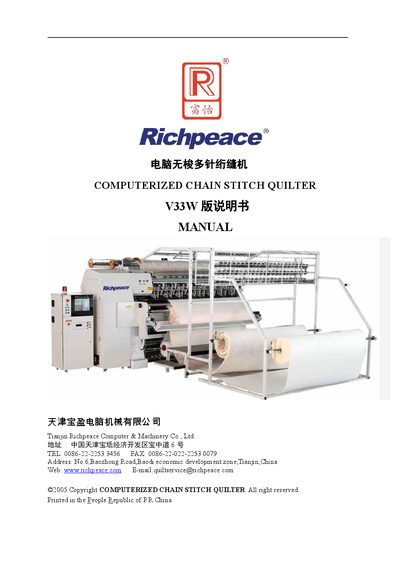

Official user manual for the Richpeace V33W computerized chainstitch quilting machine, covering safety, installation, operation and maintenance.
The Richpeace V33W is a computer‑controlled multi‑needle chainstitch quilting machine designed for high‑speed textile production. This manual provides comprehensive safety instructions, installation guidelines, electrical wiring details, and step‑by‑step operating procedures for the machine’s various interfaces.
It also includes troubleshooting tips, maintenance recommendations, and full technical specifications such as dimensions, power requirements, and performance limits. The document is intended for qualified personnel responsible for installing, configuring, and servicing the equipment. This manual is written in Chinese.
| Model | RPQD‑RC‑943 |
|---|---|
| Dimensions (L×W×H) | 4800 mm × 1600 mm × 2000 mm |
| Weight | 4500 kg |
| Operating Speed | 200‑980 rpm |
| Quilting Width | 2485 mm |
| Production Output | 60‑230 m/h |
| Needle Type | 24/180 |
| Needle Row Spacing | 50.8 mm, 76.2 mm, 127 mm |
| Needle Spacing | 25.4 mm |
| Supply Voltage | 220 V / 380 V |
| Stitch Step Length | 3‑8 mm |
| Power Capacity | 7 kW |
| Maximum Quilting Thickness | ≤ 80 mm |
The machine can be powered from either 220 V or 380 V mains.
The quilting width is specified as 2485 mm.
The total weight of the machine is 4500 kg.
The machine must be completely de‑energized and all tools removed before any inspection or repair.
